Improving Hamiltonian Monte Carlo samplers with more Hamiltonian mechanics techniques

Hamiltonian Monte-Carlo (HMC) (1) is a gradient-based Monte-Carlo technique that uses Hamiltonian mechanics to inform the Monte-Carlo sampler about the posterior distribution by integrating the orbit of the walkers as if they were particles in a potential. HMC calculates the acceptance-rejection probability based on the difference in energy.

HMC has favorable dimensional scaling over MCMC, and is widely used in machine learning inference problems.

Recent studies (2) have shown that transforming a complicated posterior distribution to a simpler, more gaussian-like base distribution can benefit the performance of MCMC samplers when the shape of the target distribution is complex. In this approach the samples are generated on the base distribution and transformed to effectively sample the target distribution.

This was later looked at by (3) in the case of the HMC sampler, where they provided a method based on normalising flows to generate the transformation. These normalising flows themselves are symplectic transformations since they are volume preserving, and they are commonly used in data science techniques. Normalising flows transform a given distribution to a standard normal distribution, which means now we can rely on the base distribution being the same in any situation.

Since we know the exact shape of the base distribution, we can make use of a technique in Hamiltonian mechanics called action-angle coordinate transformations.

Action-angle coordinates are coordinates in which the Hamiltonian is fully described by integrals of motion (action). The action-angle transformations contain information about the orbit of a particle, and we can make use of them to integrate the particle on the base distribution by transforming to action-angle coordinates, shifting the angle and transforming back to the position-momentum coordinates.

Using action-angle transformations to integrate on the base distribution effectively also integrates the particle in the target distribution, and as long as the quality of the transformation is sufficient, the energy is conserved in the target distribution as well.

The analytic description for Hamiltonian systems with a standard normal as the potential can be written as a set of independent harmonic oscillators. The action-angle transformation for harmonic oscillators is a well-known transformation, which has a simple analytic form.

We use the transformations between the target distribution and the base distribution, and the transformation to and from action-angle coordinates as a new sampling method called Action-Angle Hamiltonian Monte-Carlo (AAHMC).

1: Neal 2011

2: Parno & Marzouk 2018

3: Hoffman & Gellman 2019

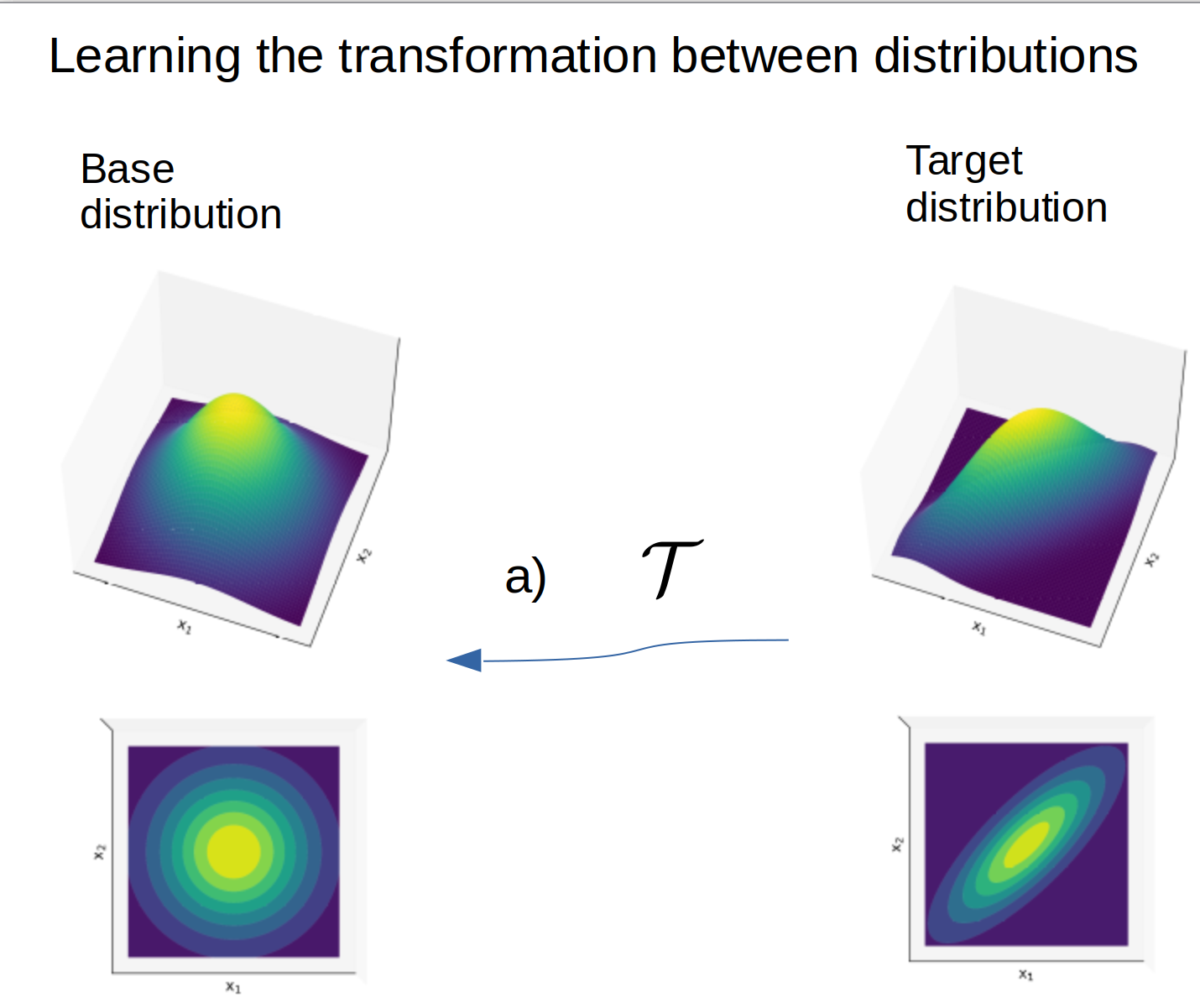

To construct the transformation between the target distribution (posterior) and the base distribution (standard normal), we use the NEUTRA Implementation in the PYRO framework.

NEUTRA makes use of normalising flows to learn the transformation, and is optimised by minimising the KL-divergence between the target and the base distribution.

reference:

1: Hoffman et al 2019

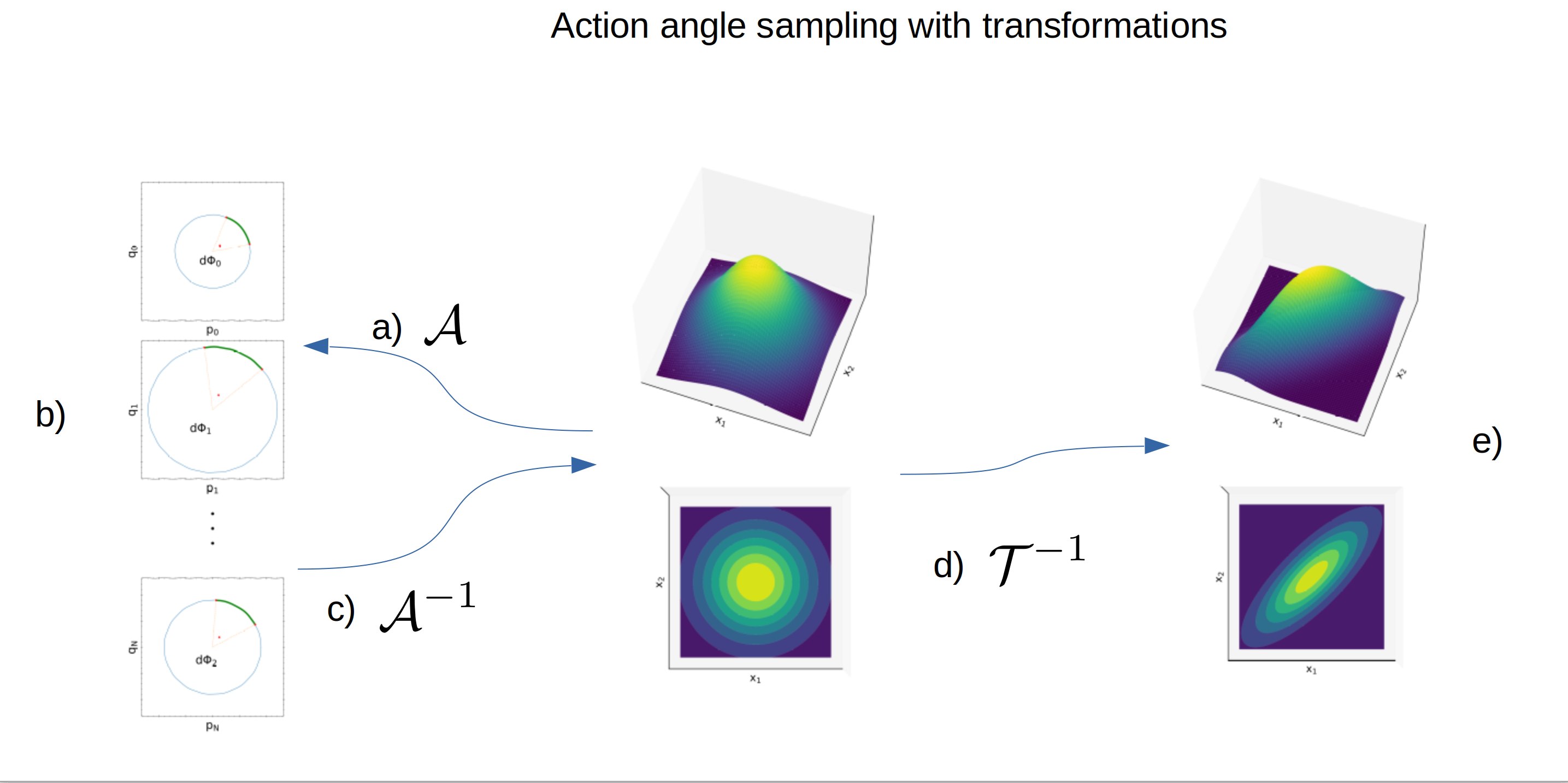

After training the map we use our action-angle sampling technique to sample the standard normal. We take the initial position and momentum of the current sample, transform these to the action-angle coordinates and increase the angles of each action-angle pair. Since the action-angle transformation describes the orbit of particles, this is the same as integrating the particle through the orbit. After the angle increase we transform back to the position-momentum coordinates and use those as the final position and momentum.

The acceptance-rejection probability is calculated with the total energies in the target space, by transforming both the initial and the final position-momentum pairs.

We measure the correctness by comparing the samples taken with the action-angle sampler through the map, as well as those taken with the NUTS sampler, to samples directly generated from the target distribution. The measure we use for this is the wasserstein distance, which is a way to calculate the distance between distributions.

1: Hoffman & Gellman 2019

We apply our action-angle sampling technique on several controlled multivariate normal distributions, and compare the performance to the direct NUTS sampler and the NUTS sampler that uses the same transformations technique.

Scaled and shifted 5-d distribution

We  perform the sampling on a scaled and shifted 5-d multivariate normal distribution, generating 25 samples of samples size 5000 and calculating the mean and confidence intervals.

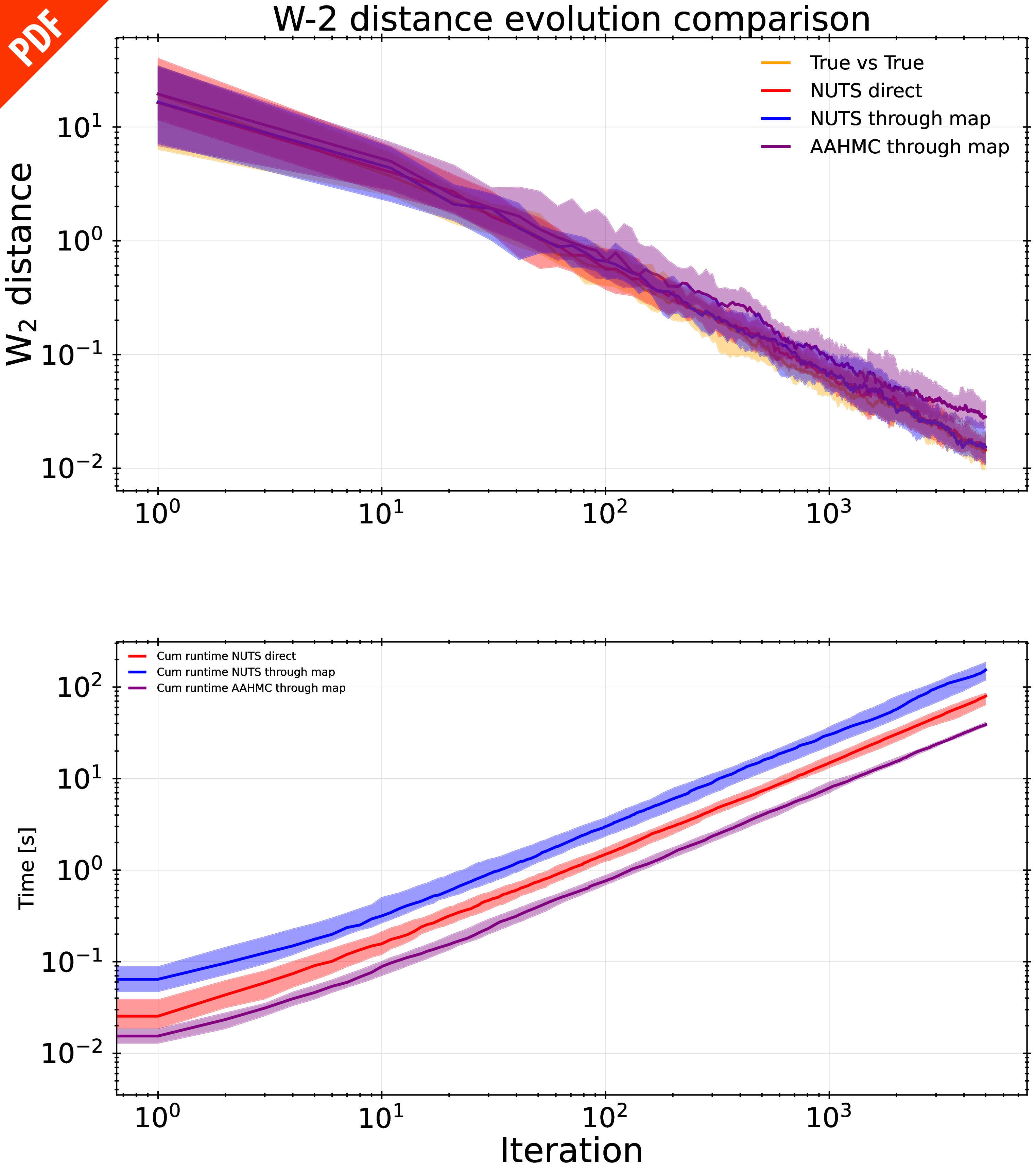

In the top panel of the figure on the right we see the sample comparison evolution, again comparing the distance between the samples generated by the various samplers (red: NUTS direct, blue: NUTS through map, purple: AAHMC through map) and the samples generated directly from the true distribution. The thick line shows the mean of all the realizations, and the transparent areas indicate the 95% confidence interval.

The bottom panel shows the runtime with growing sample size for all the samplers. The AAHMC sampler is on average an order of magnitude faster than the NUTS sampling through the map and about 5 times faster than the direct NUTS sampler.

We see that the purple region and the yellow region do not overlap as much as in the standard normal case (see other result article), indicating that the AAHMC sampler is less accurate in this case. The correctness of the AAHMC sampler is sensitive to the quality of the transformation, and training this map longer generally gives a better accuracy.

We have created a new sampling method, AAHMC, based on distribution and action-angle transformations. We find that our AAHMC sampler correctly samples from the standard normal distribution and can efficiently sample target distributions through the distribution transformations.

We use normalising flows to learn the transformation between a target distribution and a known base distribution and use action-angle coordinates to avoid numerical integration of the orbit.

The sampler is overall faster than the NUTS sampling through transformations, as well as the direct NUTS sampler.

The accuracy of the sampler depends on the quality of the transformation, and learning this transformation also has a computational cost.

Testing the implementation

We test our action-angle sampling implementation by sampling a standard normal distribution, comparing the samples to samples taken by the NUTS sampler and samples generated directly from the standard normal distribution. This can be done without any mapping because the action-angle transformation assumes that the base distribution is a standard normal distribution.

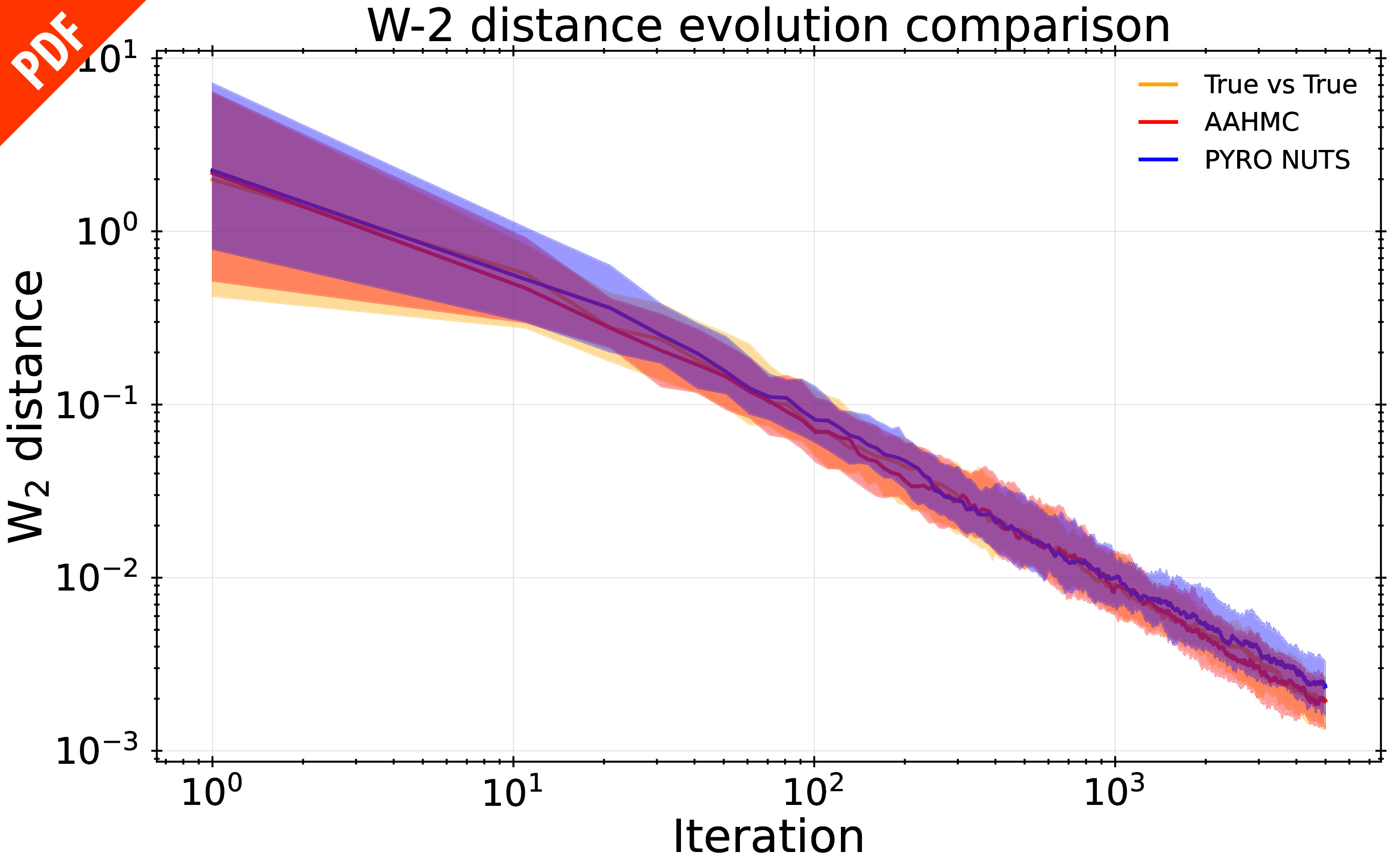

The figure on the left shows the (Wasserstein-2) distance between samples directly taken from the standard normal distribution and those those generated by the NUTS sampler and our AAHMC sampler.

The overlap and general similar decrease of distance shows that our AAHMC sampler correctly generates samples from the standard distribution, confirming the correctness of our implementation of the action-angle transformation, and the choice of the angle-shift method.

With our controlled experiments we have knowledge of the actual shape of the posterior distribution, but in real situations this is not the case.

While we see the AAHMC sampler perform well in recovering the target distributions, we will extend our analysis to include more measures commonly used in MCMC analyses, like convergence rate FINISH

The samplers that we are comparing to have been implemented into the PYRO framework and have received many optimisations. Our current action-angle sampler is not yet fully optimised and we are still improving the runtime performance.

Our intention is to create a user-friendly package that performs the calculation of the transformation and the action angle sampling for a given posterior distribution. We are currently working on finalising the code to do this, and hopefully we can provide a public code soon.
